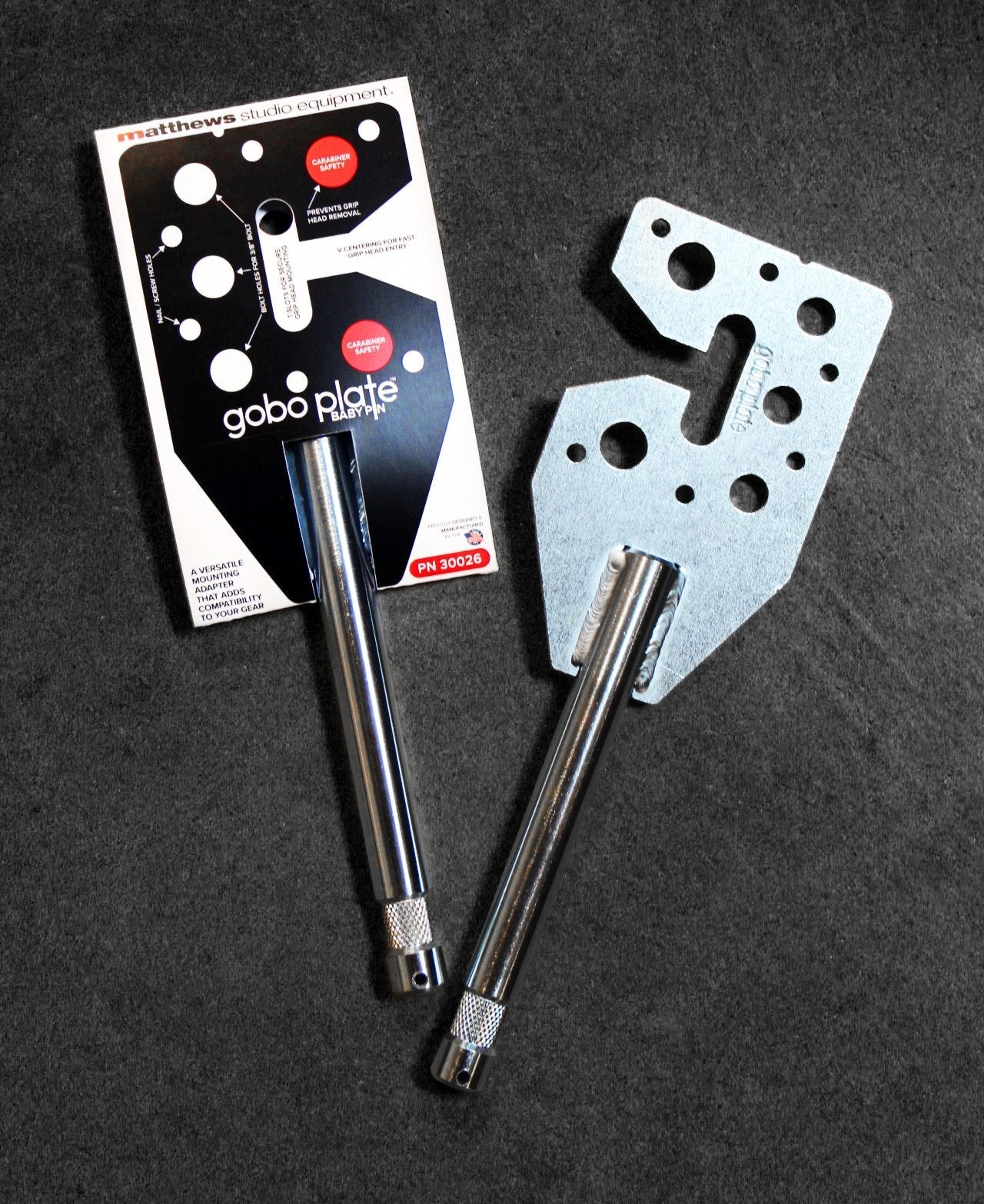

GOBO PLATE BABY PIN

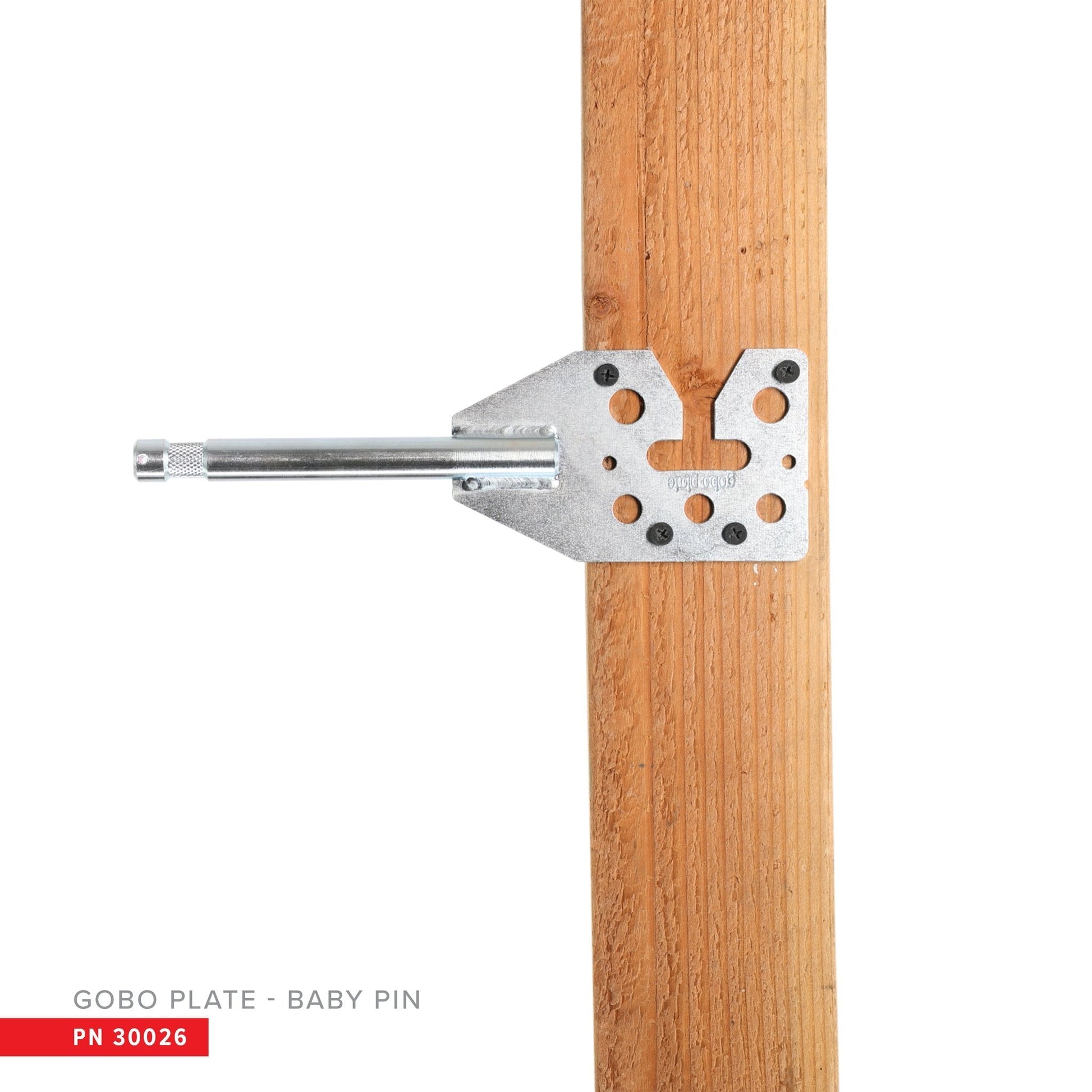

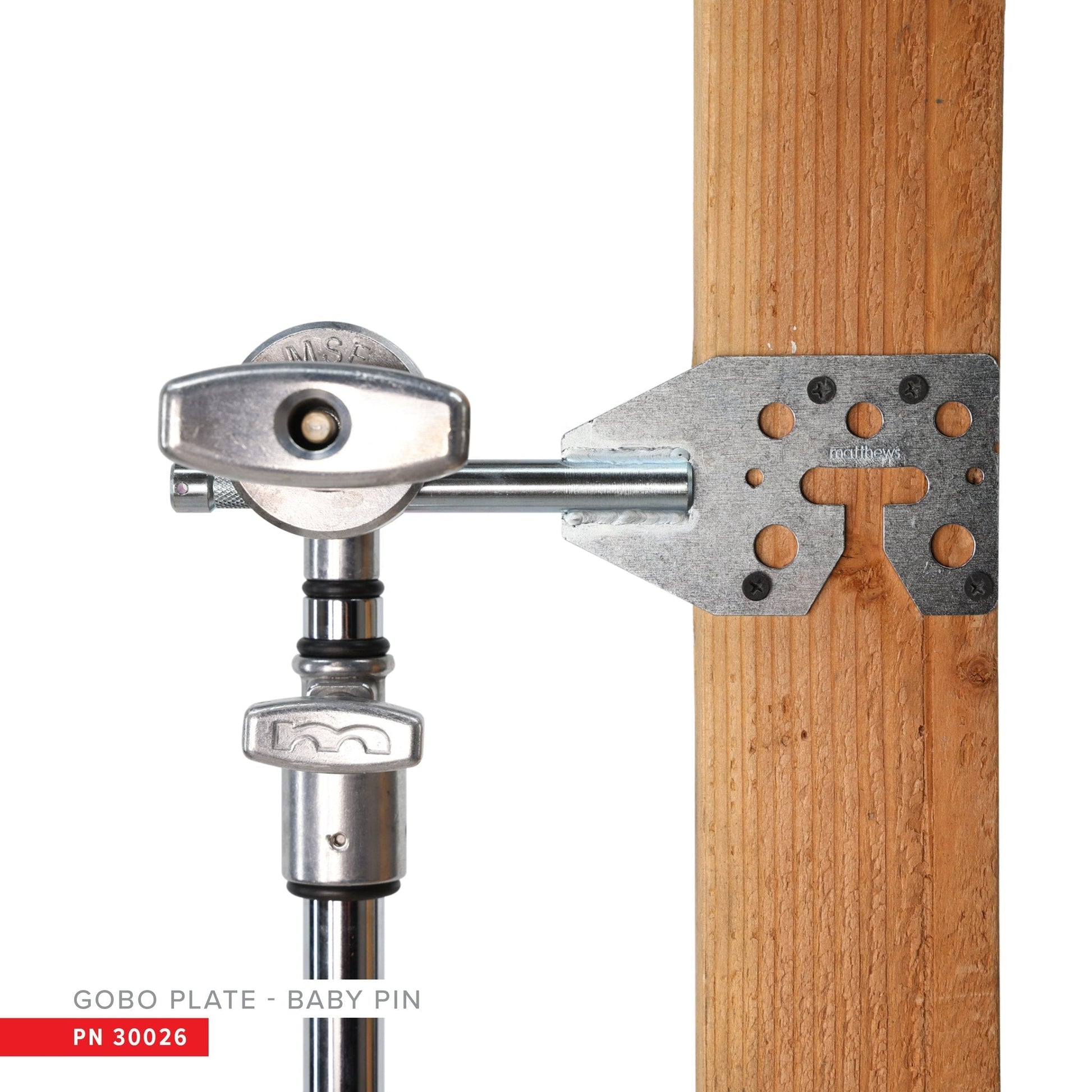

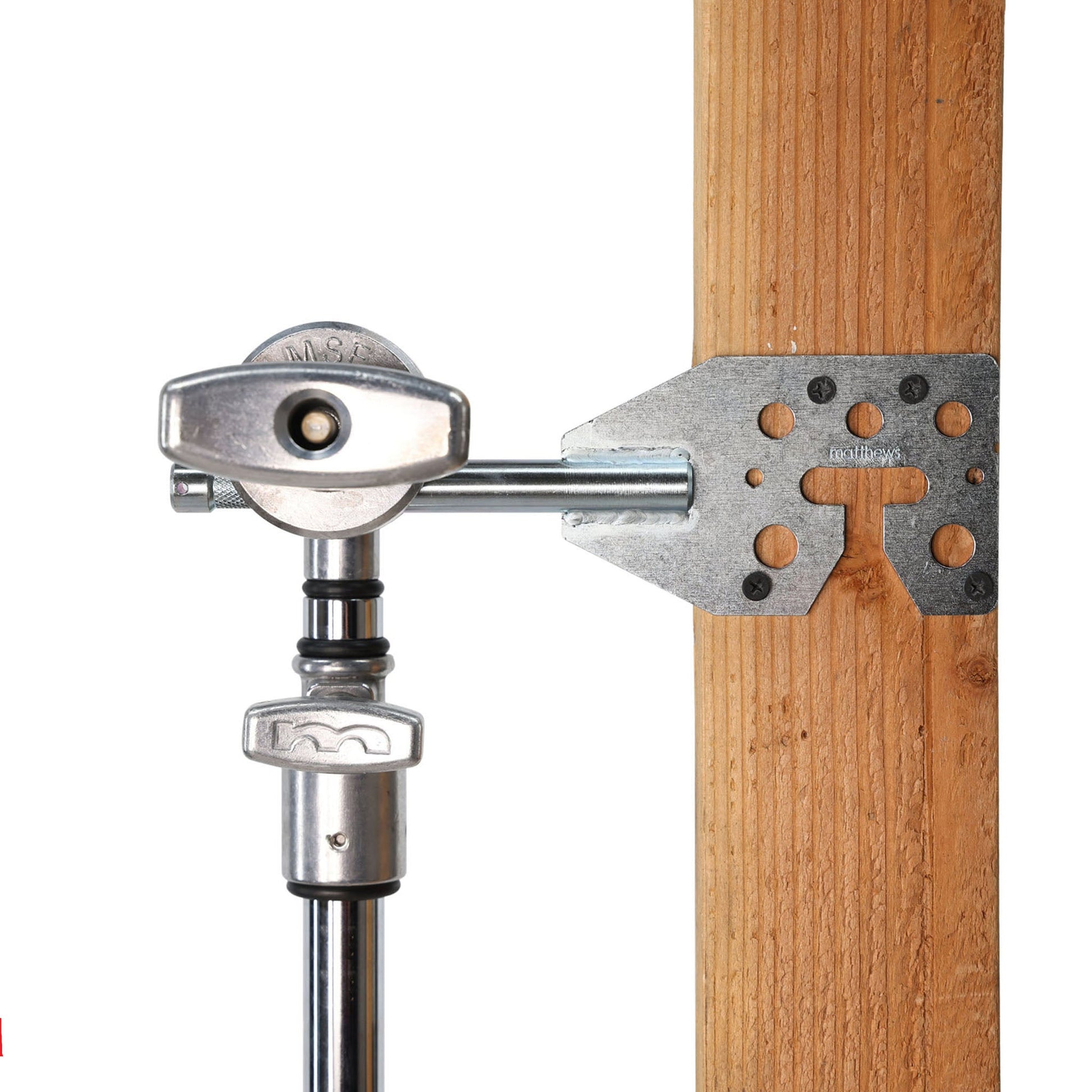

The Gobo Plate Baby Pin from Matthews Studio Equipment features the industry-standard 5/8" pin for versatile mounting solutions. Designed to attach to 2.5" grip heads, cheese plates, walls, and wooden surfaces, this adapter lets you position lighting units and grip modifiers exactly where you need them. Its thoughtfully engineered bracket provides reliable support for unconventional rigging angles on set.

CHARACTERISTICS

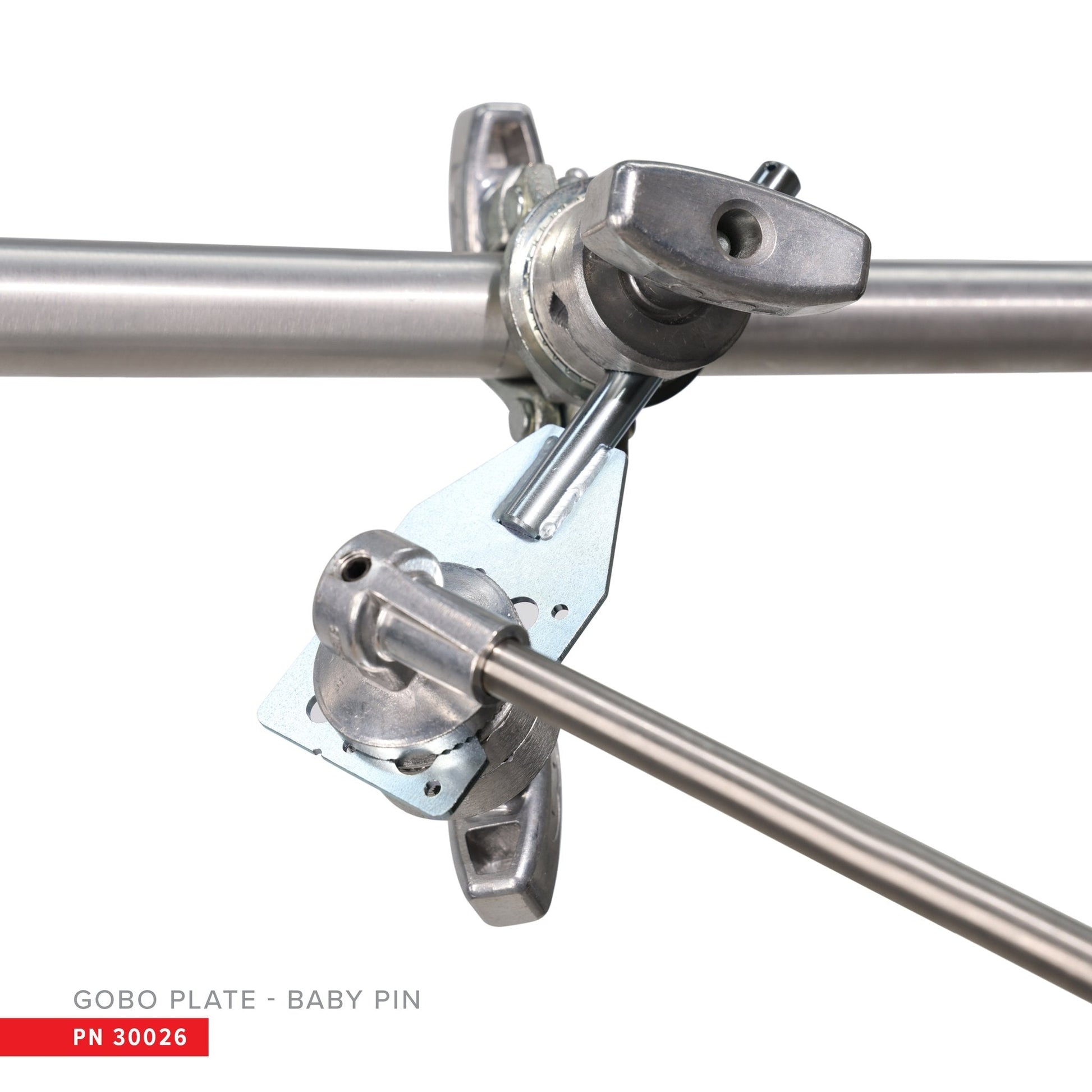

• T-slot with V centering quickly secures grip head mounting

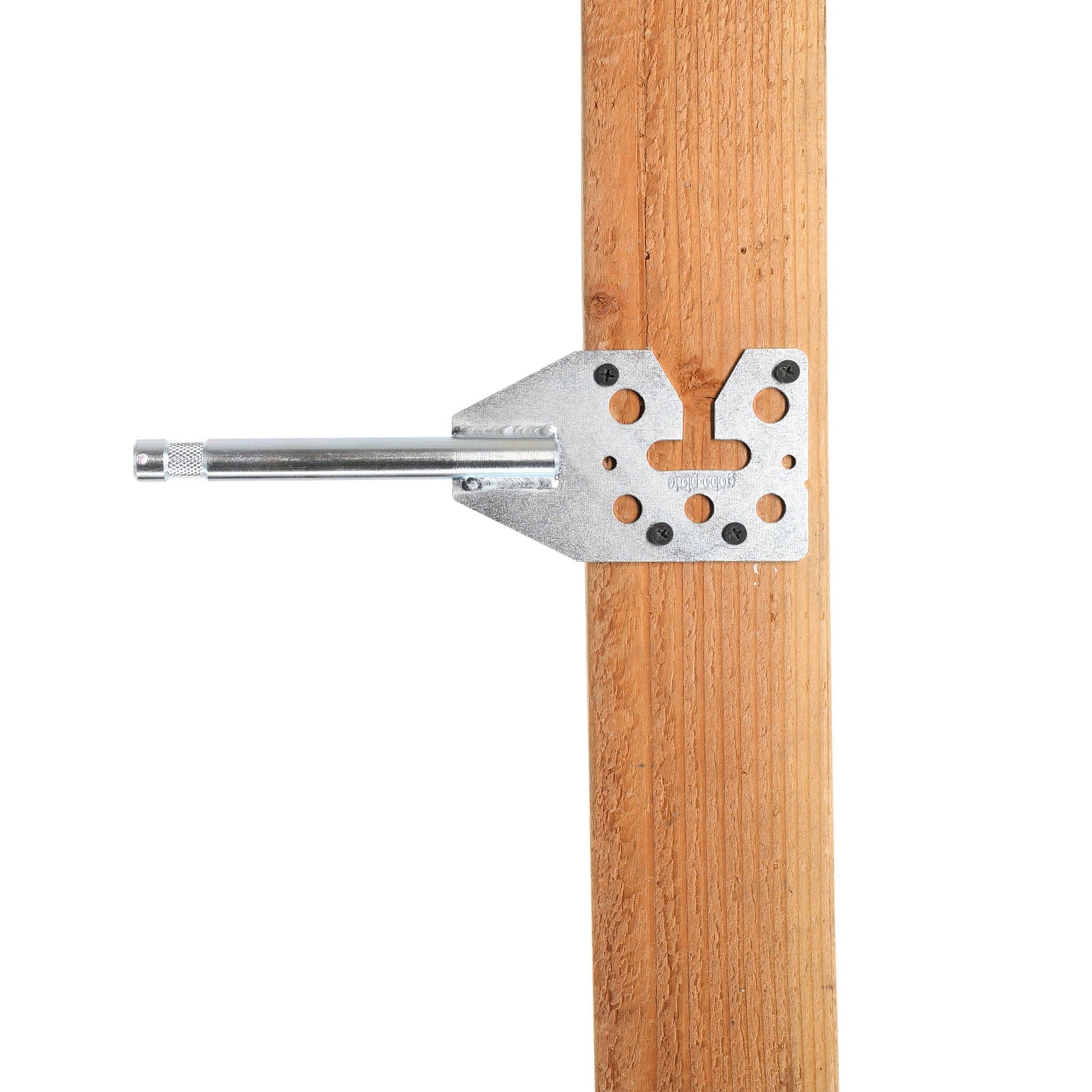

• Two each ½” diameter, three each 3/8” diameter, and six each ¼” diameter spaced circular cutouts allow mounting to heads, lumber, beams, set walls, and more.
• Safety hole on baby pin allows mounted units to be secured.

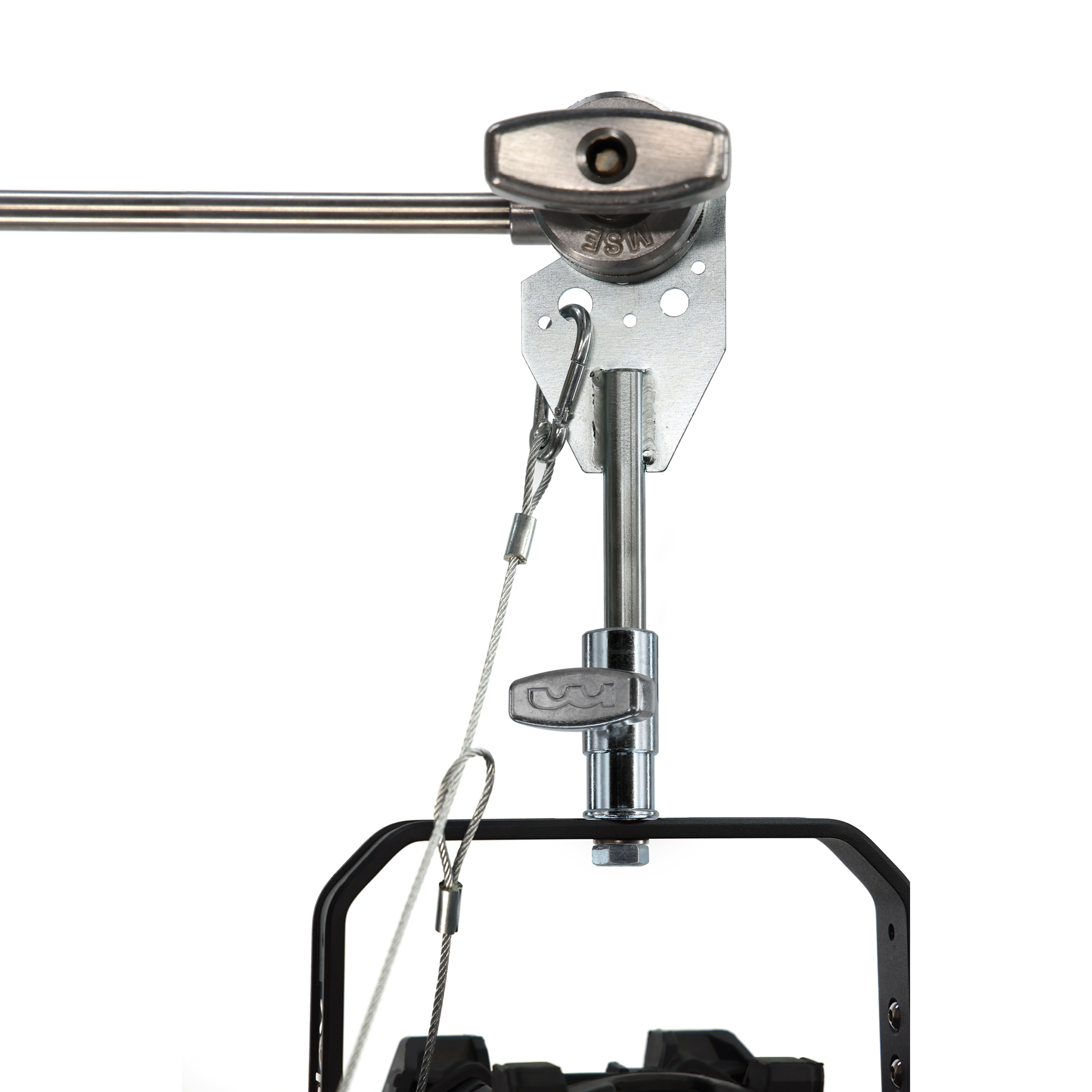

• Carabiner hole placement prevents plate from coming out of grip head as well as allowing plate to be safely tethered when rigged.

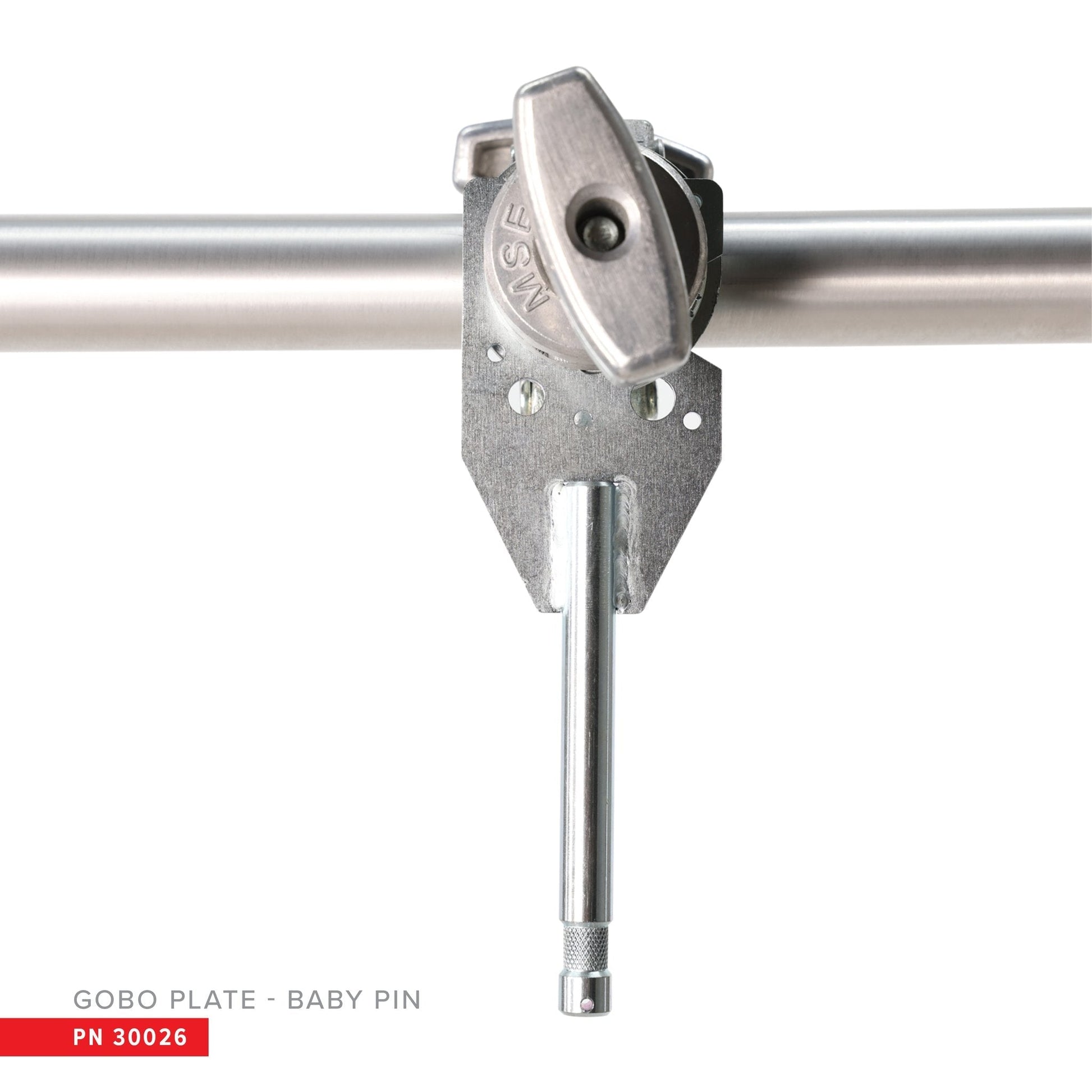

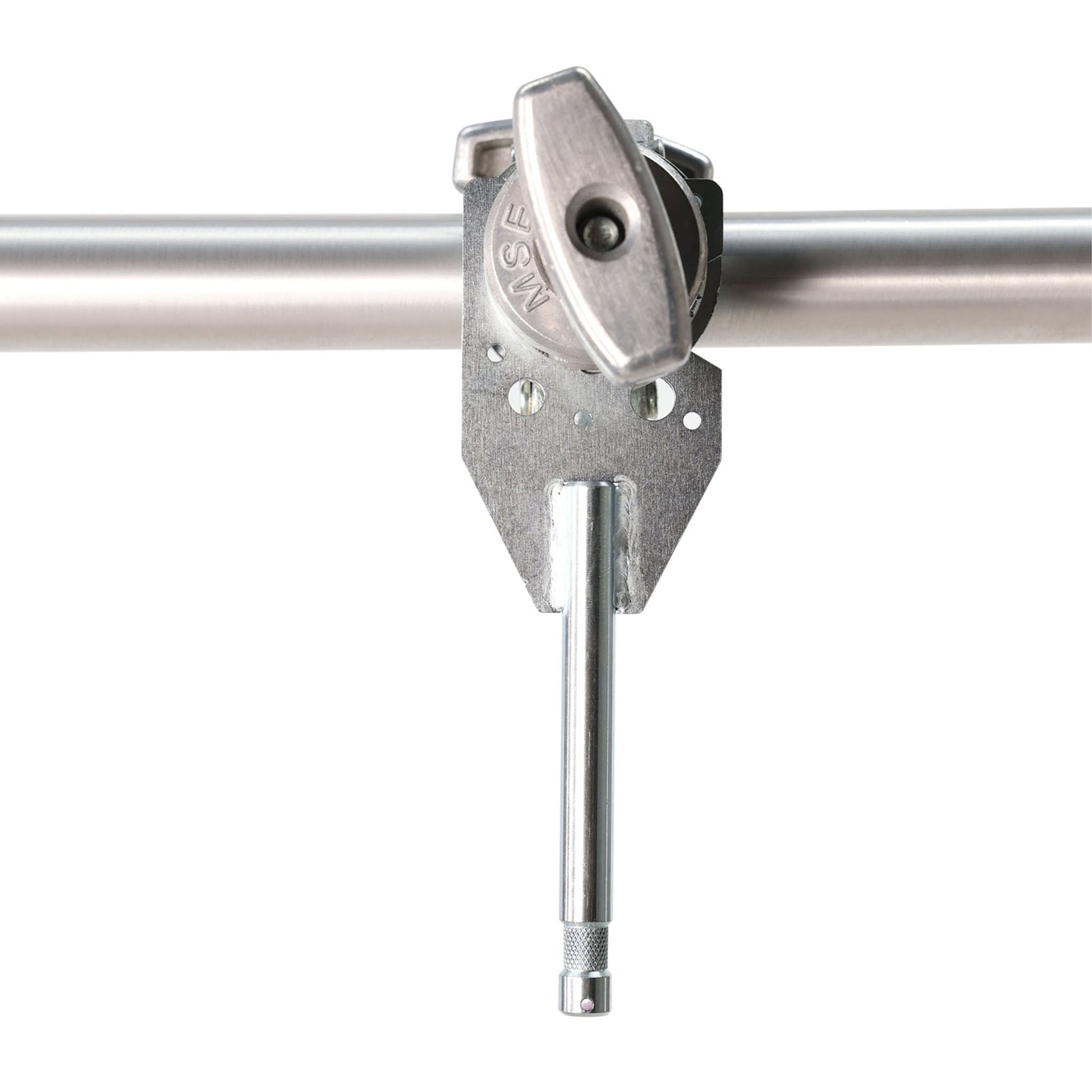

• Pin finds center when used with a grip head as a drop down.
• Knurled baby pin ensures whatever is being mounted stays put.

SPECIFICATIONS

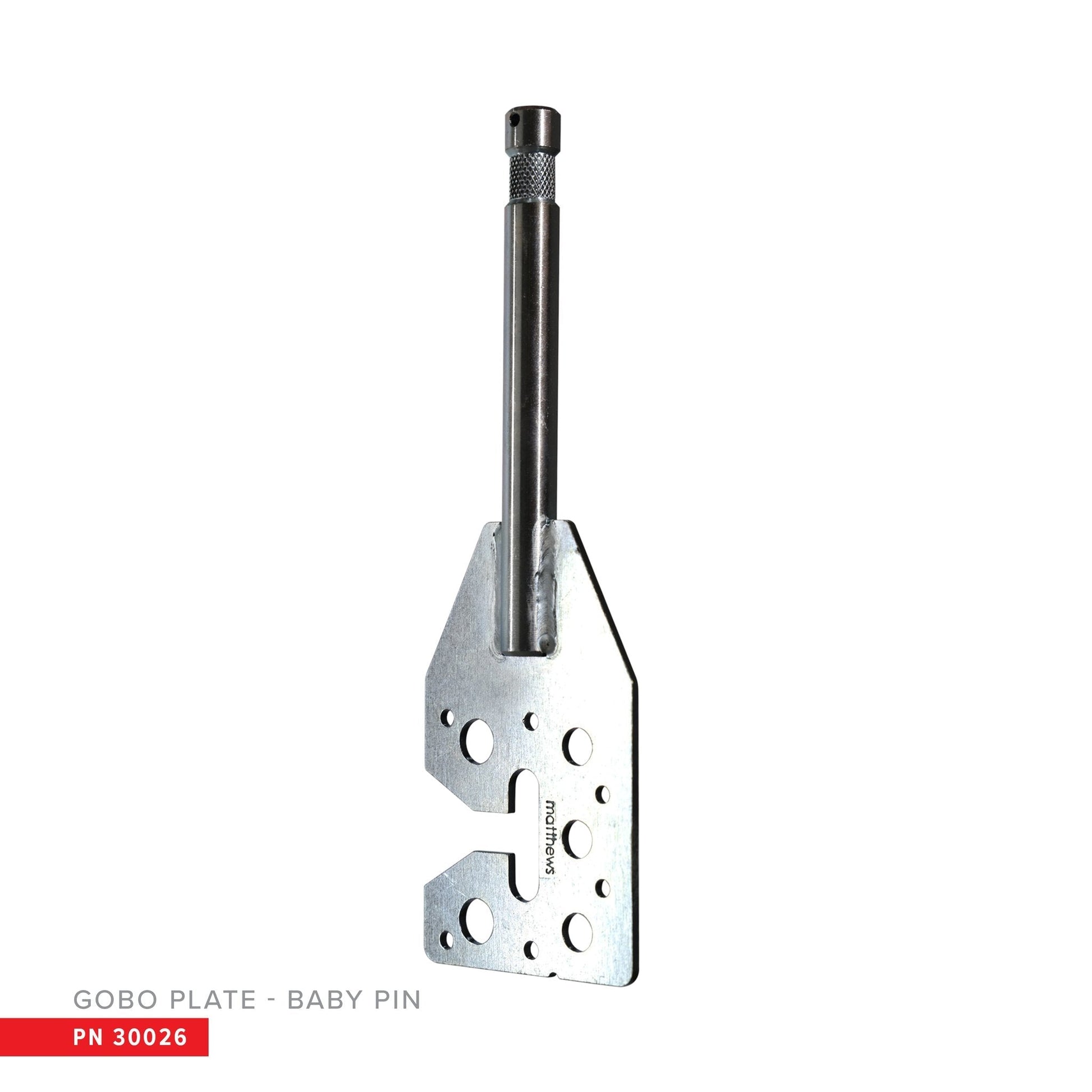

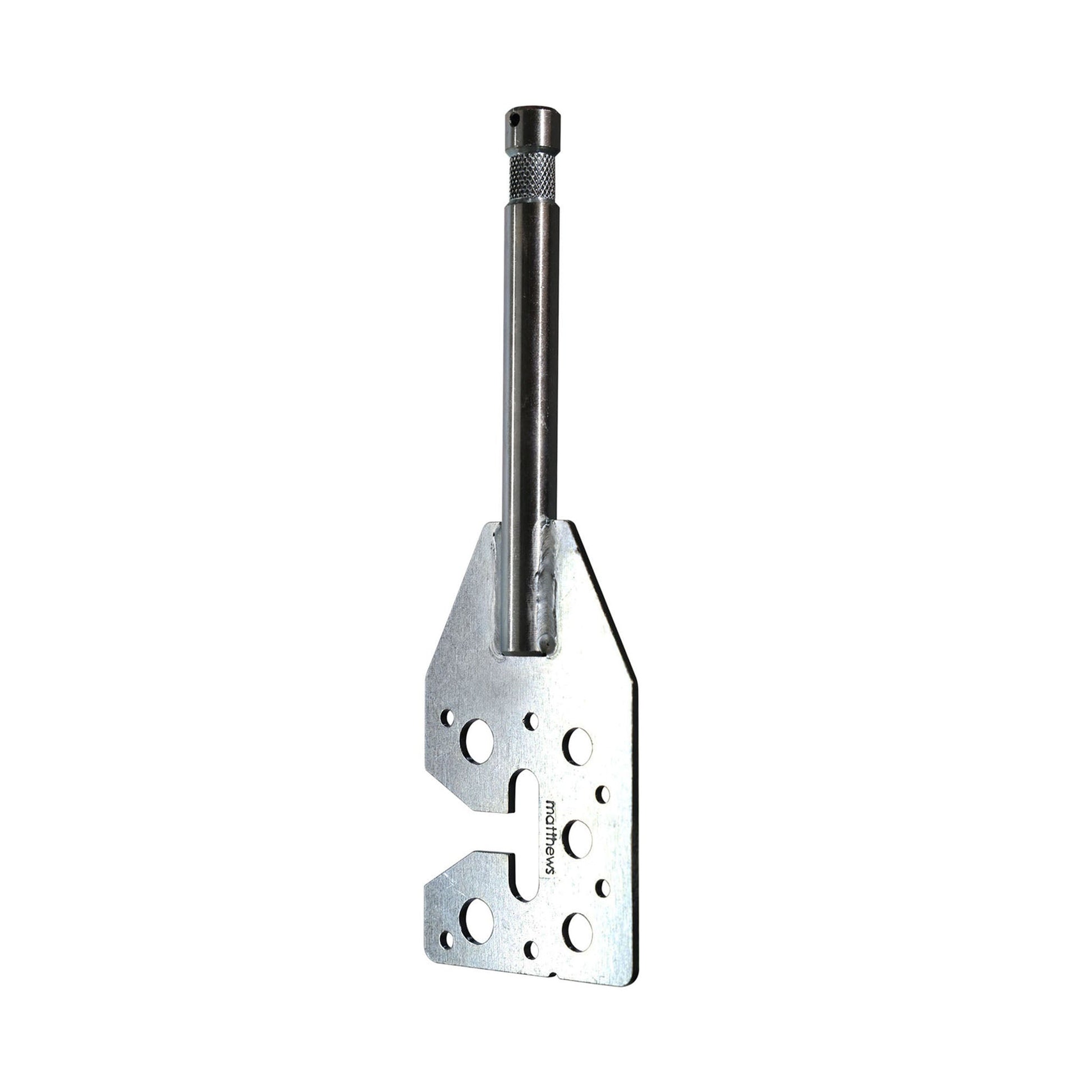

• Machined out of a single sheet of 1/8” thick steel with a welded baby pin
• Clear zinc coating
• Weight: 13.1 oz.
• Dimensions: 3” x 9.5”
